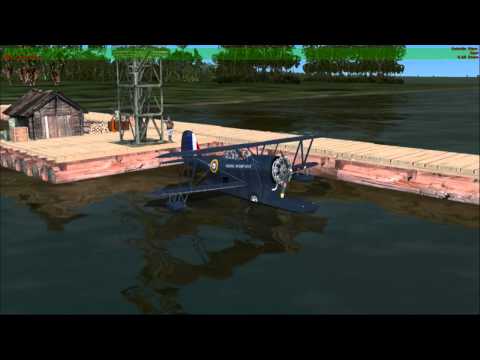

The Grumman J2F Duck (company designation G-15) was an American single-engine amphibious biplane with a large monocoque central float which also housed the retractable main landing gear. It had strut-mounted stabiliser floats beneath each lower wing. A crew of two or three were carried in tandem cockpits, forward for the pilot and rear for an observer with room for a radio operator if required. It had a cabin in the fuselage for two passengers or a stretcher.
The Duck's main pontoon was blended into the fuselage, making it almost a flying boat despite its similarity to a conventional landplane which has been float-equipped. The aircraft was used by both the United States Navy and United States Coast Guard, with the latter using them as utility aircraft for missions including mapping, rescue work, photography, and a target training.
Download size: 148Mb
